Jetoptera’s innovations are foundational and applicable in a wide variety of domains. The Fluidic Propulsive System is scalable and can be used to power a range of aircraft for both VTOL and STOL applications. Jetoptera licenses and sells its patented propulsion system. In conjunction with partners, Jetoptera is building unmanned and, eventually, manned aircraft.

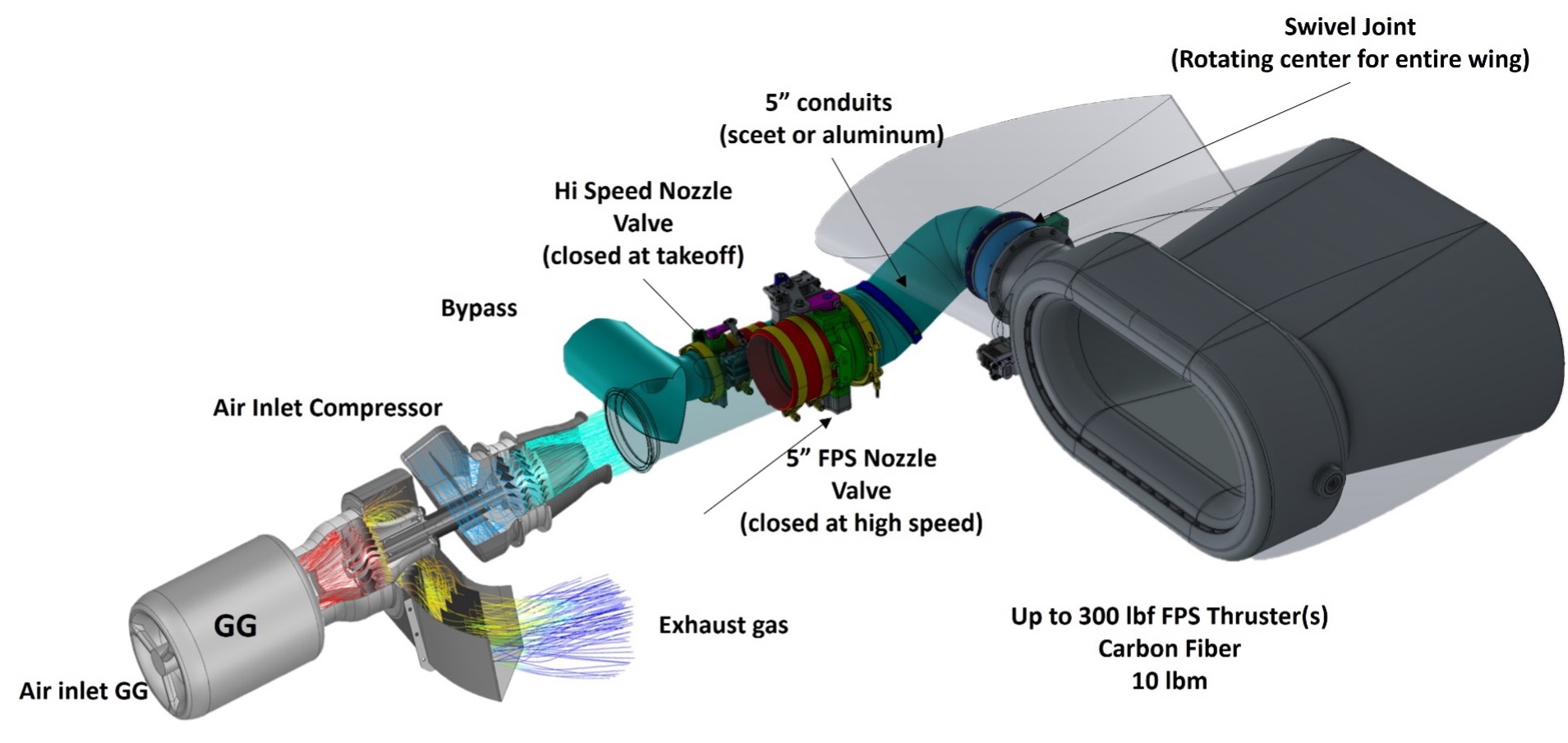

The Fluidic Propulsive System is scalable. A source of compressed air is amplified by thrust augmentation. More than that, the resulting system is now capable of VTOL. The table below shows the resulting thrust and other specifications as we vary the compressor size, for VTOL, STOL, and conventional applications.
Name | Compressor Power [kW] |
Thrust at SLS (iso-day) [lbf] |
Specific Fuel Consumption [lb/lbf-h] |
Weight [lb] |
Features, Applications [lb] |
||
---|---|---|---|---|---|---|---|
VTOL | STOL | CTOL | |||||
FPS-200 | 75 | 200 | 0.42 | 66 | 175 | 500 | 750 |
FPS-400 | 150 | 425 | 0.38 | 120 | 350 | 1300 | 1800 |
FPS-500 | 200 | 510 | 0.35 | 150 | 425 | 1500 | 2000 |
FPS-700 | 250 | 680 | 0.35 | 200 | 575 | 1800 | 2500 |
FPS-1250 | 500 | 1275 | 0.32 | 375 | 1100 | 2500 | 4000 |
FPS-1500 | 600 | 1526 | 0.32 | 385 | 1400 | 4200 | 5000 |
FPS-3000 | 1200 | 3000 | 0.26 | 600 | 2500 | 7500 | 10000 |

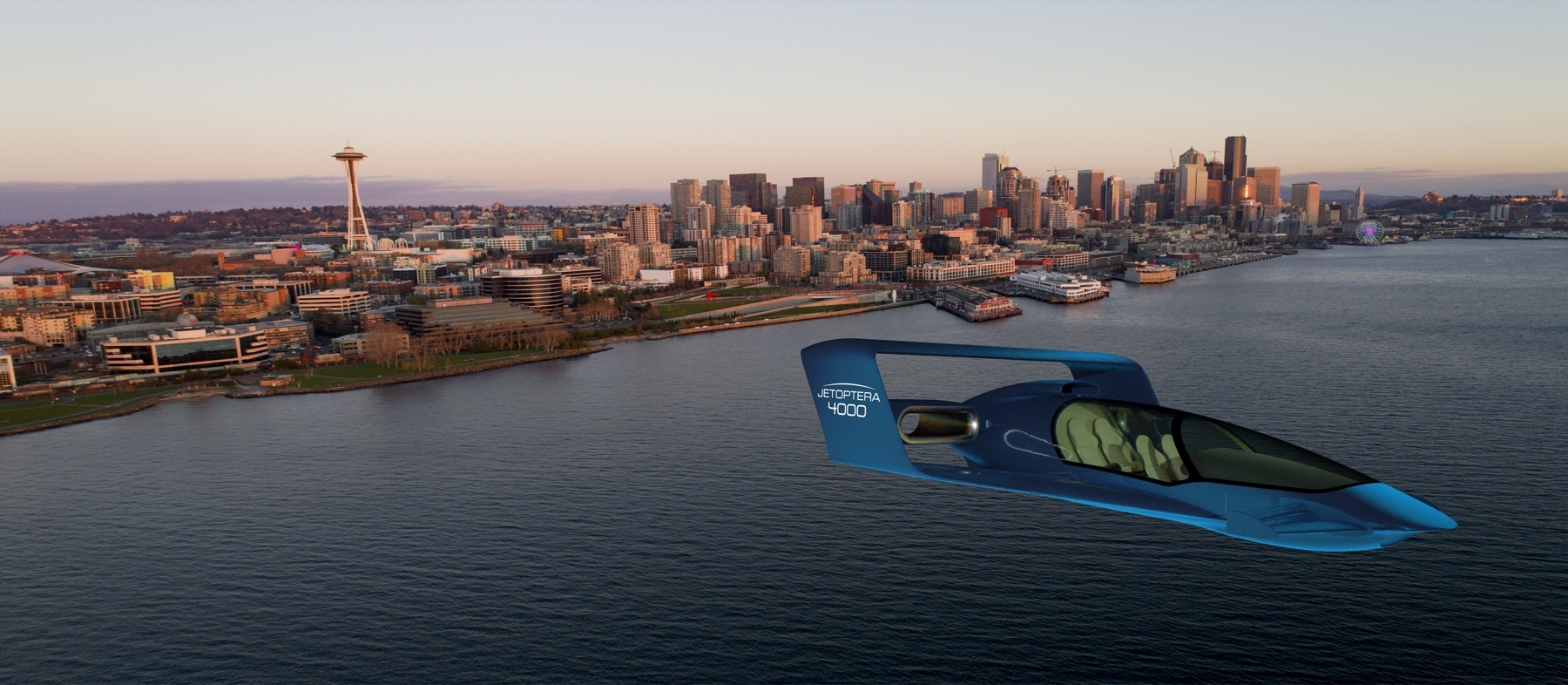

Jetoptera aircraft are named for their maximum weight at take-off. At the smallest end, the J-55 fits into the part 107 maximum of 55 lbs. In order to meet requirements for this total weight, it is powered by vectoring turbojets rather than our propulsion system. It still benefits from our novel airframe design and delivers very high speeds, it can hover and take off vertically as tail-sitter. The smallest FPS-powered aircraft is the V/STOL-capable J-220. Our technology is scalable to beyond 5,000 lbf take off thrust for VTOL while maintaining an excellent thrust to weight ratio, distributed thrust capability and simplicity of design. This enables, at the higher end, a four-seat flying car, the J-4000. The same propulsion system can be paired with thrusters embedded into the wing to power aircraft of extreme STOL performance, ranging in size from 800 to beyond 9,000 lbs.
Max Total Weight: 55 lbs
Payload Capacity: 5-15 lbs*
Max Alt: 400 feet AGL (geo preset)
Max Flight Time: 30 min*
Max. Speed (30 knot headwind): 87 knots
Standard
VTOL + Hovering
2 x P160 Rxi Jetcat turbojets
Futaba Hand Controller
Navigation Lighting/Strobe
Optional
PING-200sr MODE S ADS-B Transponder
UAV Factory Ground Control Station
* 30 min with 5 lbs payload and at max speed
Max Total Weight: 55 lbs
Payload Capacity: 5-15 lbs*
Max Alt: 33000 feet MSL
Max Flight Time: 20-30 min*
Max. Speed (30 knot headwind): 250 knots
Standard
VTOL + Hovering
2 x P160 Rxi Jetcat turbojets
UAV Factory Ground Control Station
Backup Futaba Hand Controller
Navigation Lighting/Strobe
Optional
Conventional or STOL
PING-200sr MODE S ADS-B Transponder
* 20 min with max speed and/or 15 lbs payload
30 min with lower speed and 5 lbs payload
The Fluidic Propulsive System can be adapted and deployed on several aircraft including gliders with need for thrust when and where needed. Advantages over alternatives include efficiency (from intermittent use) and capability for high altitude operations. The ability of the FPS to conform with existing airframe features can lead to unmatched endurance and maneuvering capabilities.
Range / payload:
150 mi / 12 lbs
100 mi / 25 lbs
75 mi / 50 lbs
Speed: 200 mph
Expected Q1 2020
Extremely efficient design
SFC = 0.45 lb/(lbf∙h)
2.5:1 Thrust-to-Weight
Performance | |
---|---|
Max speed | 200+ mph |
Cruise speed | 135 mph |
Range (200 kg payload) | 800 mi |
Range (50 kg payload) | 1,000 mi |
Max Range | 1,100 mi |
Takeoff (ground roll) | 50 ft |
Takeoff (over 50ft obstacle) | 150 ft |
Landing (ground roll) | 40 ft |
Landing (over 50 ft obstacle) | 130 ft |
Endurance | > 7 hr |
Propulsion System | |
---|---|
Powerplant | Turbocompresor 600kW |
Lift Augmentation | FPS™ Jet Blown Wing |
Max Thrust | 1,685 lbf (7.5 kN) |
Weight | |
---|---|
MTOW | 2,860 lb (1,300 kg) |
Empty weight | 1,100 lb (500 kg) |
Useful Load | 1,760 lb (800 kg) |
Max Fuel | 1,716 lb (780 kg) |
Max Payload | 1,100 lb (500 kg) |
Dimensions | |
---|---|
Wingspan | 25 ft (7.5m) |
Length | 16 ft (5 m) |
Cruise Speed: 200 mph
Max Range: 350 miles
Useful Load: 400 lbs
Max Weight: 2,000 lbs
Max Altitude: 15,000 ft
VTOL + Hovering
Jetoptera Propulsion System
Cruise Speed: 200 mph
Max Range: 350 miles
Useful Load: 800 lbs
Max Weight: 4,000 lbs
Max Altitude: 15,000 ft
VTOL + Hovering
Jetoptera Propulsion System
